Dimensions of the Alaris 8100 pump:
Weight	2.5 lb (1.13 kg)
Height	8.9 in (22.6 cm)
Width	3.3 in (8.4 cm)
Depth	5.5 in (14 cm)
Accumulated air window:	When the single bolus setting is 50, the volume window is 2.8 mL, and 10% air triggers an alarm. When the single bolus setting is 75, the volume window is 8.0 mL, and 20% air triggers an alarm. When the single bolus setting is 250, the volume window is 8.0, and 30% air triggers an alarm. When the single bolus setting is 500, the volume window is 12.0 mL, and 30% air triggers an alarm.
Bolus volume, maximum after occlusion:
50 mmHg pressure limit	Rate is 25 mL/h and bolus volume is =0.3 mL.
525 mmHg pressure limit	Rate is 25 mL/h and bolus volume is =0.6 mL.
Critical volume:	0.6 mL is the maximum over-infusion in a single fault condition
Fluid ingress protection:	IPX1, drip-proof
Maximum infusion pump pressure:	654 mmHg, the maximum occlusion alarm threshold plus tolerance
IV pump rate accuracy, ±5% at rates between 1 and 999 mL/h and ±5.5% at rates <1 mL/h, 95% of the time with 95% confidence:
Infusion rate range	0.1 – 999 mL/h
Ambient temperature	68 ±4° F (20 ±2° C)
Source container height	20 inches above top
Test solution	Distilled water
Distal back pressure	0 mmHg (0 kPa)
Needle	18 gauge
Administration set model	2210
Infusion of air:
Ultrasonic air-in-line detection	Maximum single bolus size = selectable 50, 75 or 250 microliters nominal or 500 microliters in anesthesia mode.
IKVO (keep vein open) rate:
Factory default setting	1 mL/h if the set rate is 1 mL/h or above
Set rate	if the rate is 0.9 mL/h or below
KVO selection range:	Set the KVO rate from 0.1 – 20 mL/h in 0.1 mL/h increments.
Occlusion alarm thresholds:
Pumping mode	525 mmHg at rates =30 mL/h. The levels vary according to rate and patient back–pressure at rates <30 mL/h
Selectable mode	The user selected 50 – 525 mmHg in 25 mmHg increments
Operating Principle:	Positive displacement
Shock protection:	Type CF, defibrillator proof
Environmental operating systems:
Temperature range	41 to 104 degrees Fahrenheit (5 to 40 degrees Celsius)
Relative humidity	20 to 90%
Atmospheric pressure	525 to 4560 mmHg (700 to 6080 hPa)
Environmental storage and transport:
Temperature range	-4 to 140 degrees Fahrenheit (-20 to 60 degrees Celsius)
Relative humidity	5 to 85%
Atmospheric pressure	375 to 760 mmHg (500 to 1013 hPa)

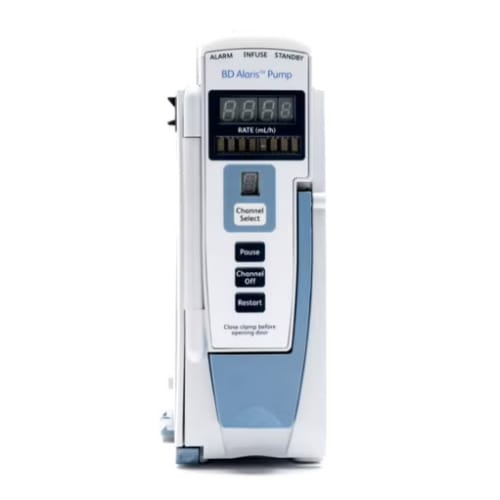

BD Alaris 8100 Infusion Pump Module
